ERA-DCRX Wireless Warehouse Doorbell Receiver Compatible with All ERA Transmitters/Sensors
$69.99
The ERA-DCRX is a long-range wireless chime receiver compatible with the ERA series of products, except for the ERA-PIR-SPK which is a standalone product. Purchased as a kit, this receiver is featured in the ERA-UTDCR & the WDK-ERA-STROBE.
Low Flat Rate Domestic Shipping!
- Expedited & International Shipping (for most products)
- Safe & Secure Checkout
- 30-Day Satisfaction Guaranteed
- Call or Email for Support

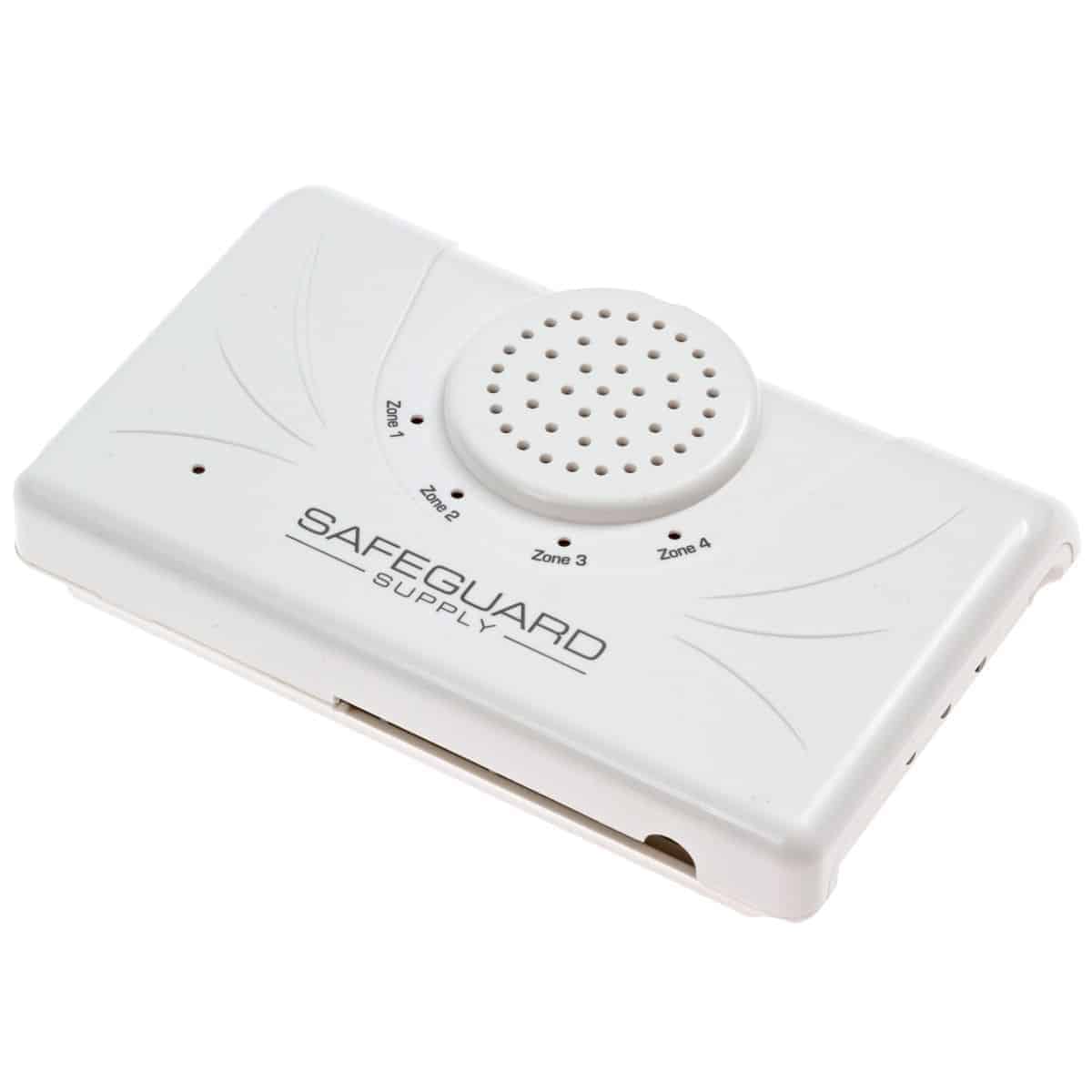

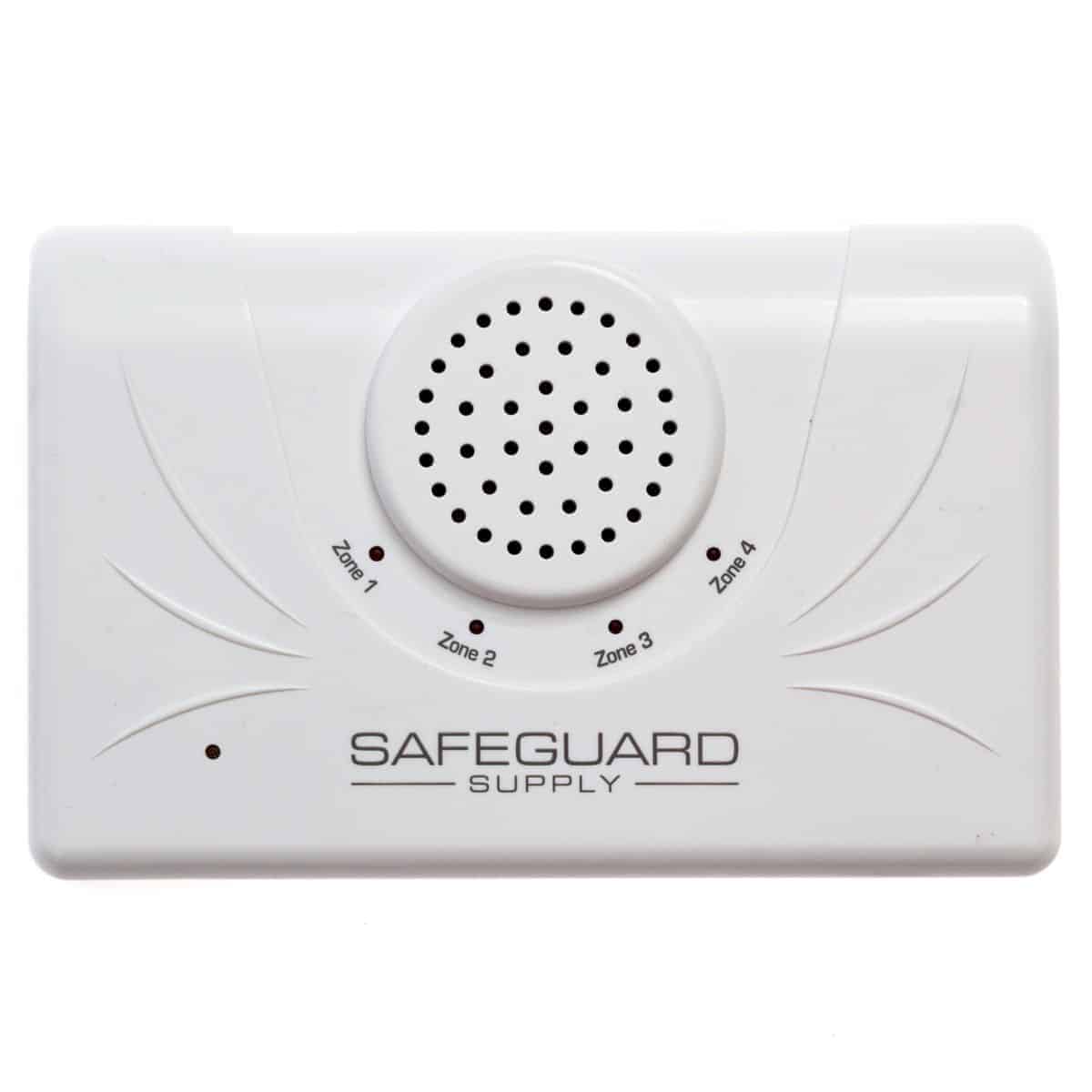

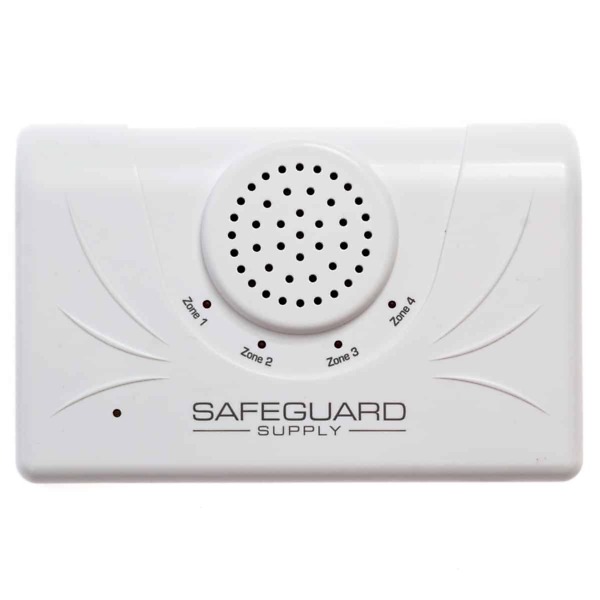

The ERA-DCRX is a wireless warehouse doorbell receiver (which may be used in a variety of locations) compatible with the Safeguard Supply ERA series of products (except the ERA-PIR-SPK which is a stand-alone product). The receiver plugs into a standard wall outlet and will play one of four tones when triggered by a compatible transmitter/sensor. The receiver plays at approximately 85 dB and has a volume control knob that allows you to turn the volume down or up.
The receiver gets a wireless signal from a compatible receiver such as the driveway alert sensor, an outdoor-rated motion-based sensor, a door/window magnetic contact, or a push-button. Simply match the dip switches on the transmitter/sensor to the dip switches on the receiver's zone, and each triggered sensor will make the receiver play a distinct sound (scroll below to hear available sounds).
Let's say you have a large warehouse with two entry doors, and you would like to place a wireless push button outside the door. For the first push-button, the ERA-UTX, on your exterior door you can associate it with Zone 1 on the receiver, and when triggered it will play the "Classical" sound. For a second door, you can place another push button outside and associate it with zone 2 and it will play the "Westminster" melody.

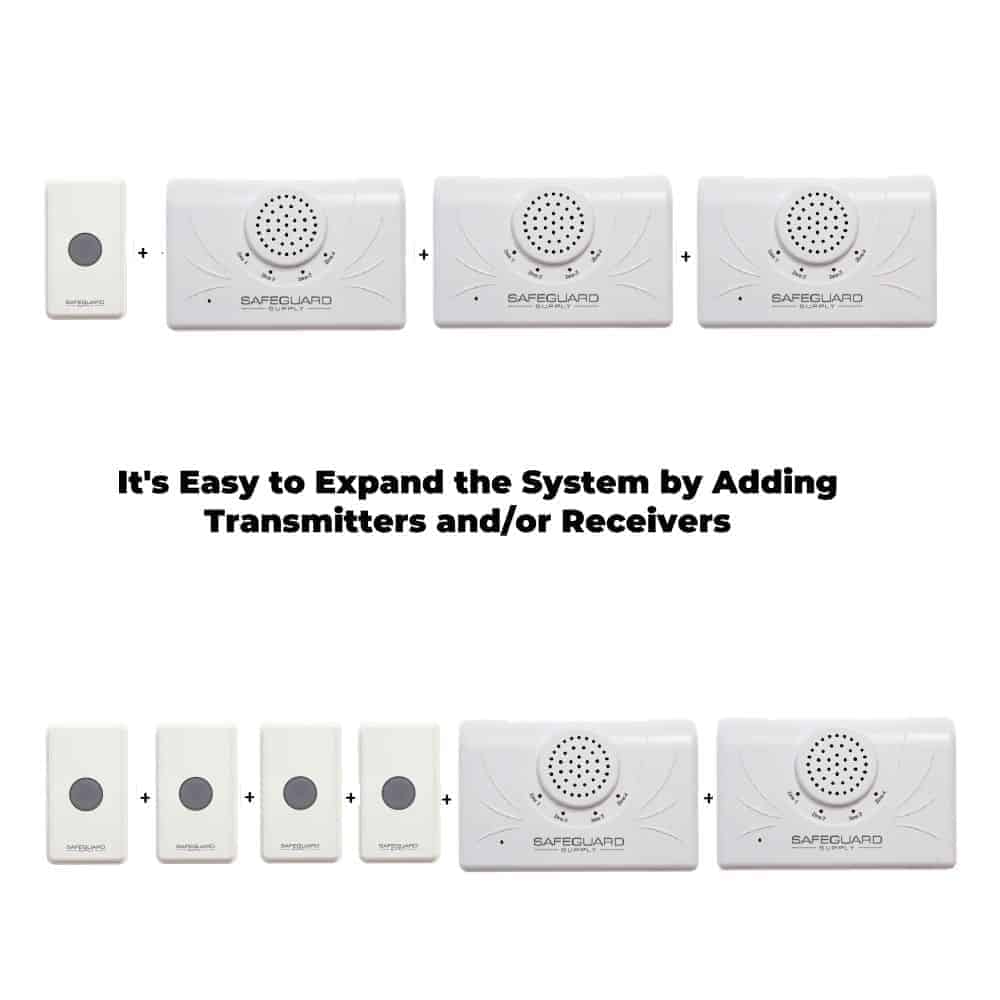

You can use this receiver to expand your existing system. For example, if you are using the WDK-ERA-STROBE Warehouse Doorbell Kit and need to put a receiver in more than one location, the ERA-DCRX is the desktop version of the receiver you would purchase. If you have an existing system and need to replace a receiver, this is a replacement part.
Features:
- The receiver must be paired with a compatible, ERA series transmitter.
- The receiver plugs into a standard wall outlet
- Receiver has four zones. Transmitters/sensors are paired into a respective zone.
- Each zone plays a distinct tone/melody, with one of twelve choices.
- Receiver may be placed up to 4000 feet from the compatible transmitter
- There is a c-relay available as well as 4 x 12V DC output you can pair to a zone
- One year manufacturer's warranty
- Sound level is approximately 85 dBA.
*For detailed information about the receiver, please visit the ERA-UTDCR Warehouse Doorbell Kit product page.
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 7.5 × 6.25 × 3 in |
| Brand | Safeguard Supply |
| Condition | New |
| Wireless Range | 4000 ft. |
| Warranty | 1 Year |
| Wireless Features | C-Form Relays, Expandable, Live 12V DC Output, Multi-Zone, Visual Indicator, Volume Control |
| Compatibility | Safeguard Supply - ERA Series |
| Battery Or Plug In | Plug-in Receiver |
| Kit Or Accessory | Receiver Only |
