ERA-PRDCR Motion Alarm Kit Designed for Businesses & Warehouses

Does Your Business Need a Reliable, Long Range Wireless Motion Sensor Door Chime Kit?

If you can't seem to find a wireless entry alert that you can depend on, look no further than the ERA-PRDCR & ERA-PRXPG entrance alert kit by Safeguard Supply.  This kit features a Passive Infrared (PIR) sensor/transmitter (ERA-PIR) that's activated when the combination of heat and movement is detected within the monitored zone with the options of choosing a desktop receiver or a plugin receiver.  The ERA-PRDCR & ERA-PRXPG are a Motion Alarm Kits Designed for Businesses & Warehouses.

This type of motion sensor door chime entrance alert is designed to monitor doorways where the door sometimes remains open, or to cover open areas such as hallways.  Although this product works extremely well over doorways that typically remained closed, you can also refer to its companion product, the ERA-UTDCR which features a magnetic door contact instead of the motion sensor featured in this kit.

How this Motion Alarm Kit Designed for Businesses & Warehouses Works:

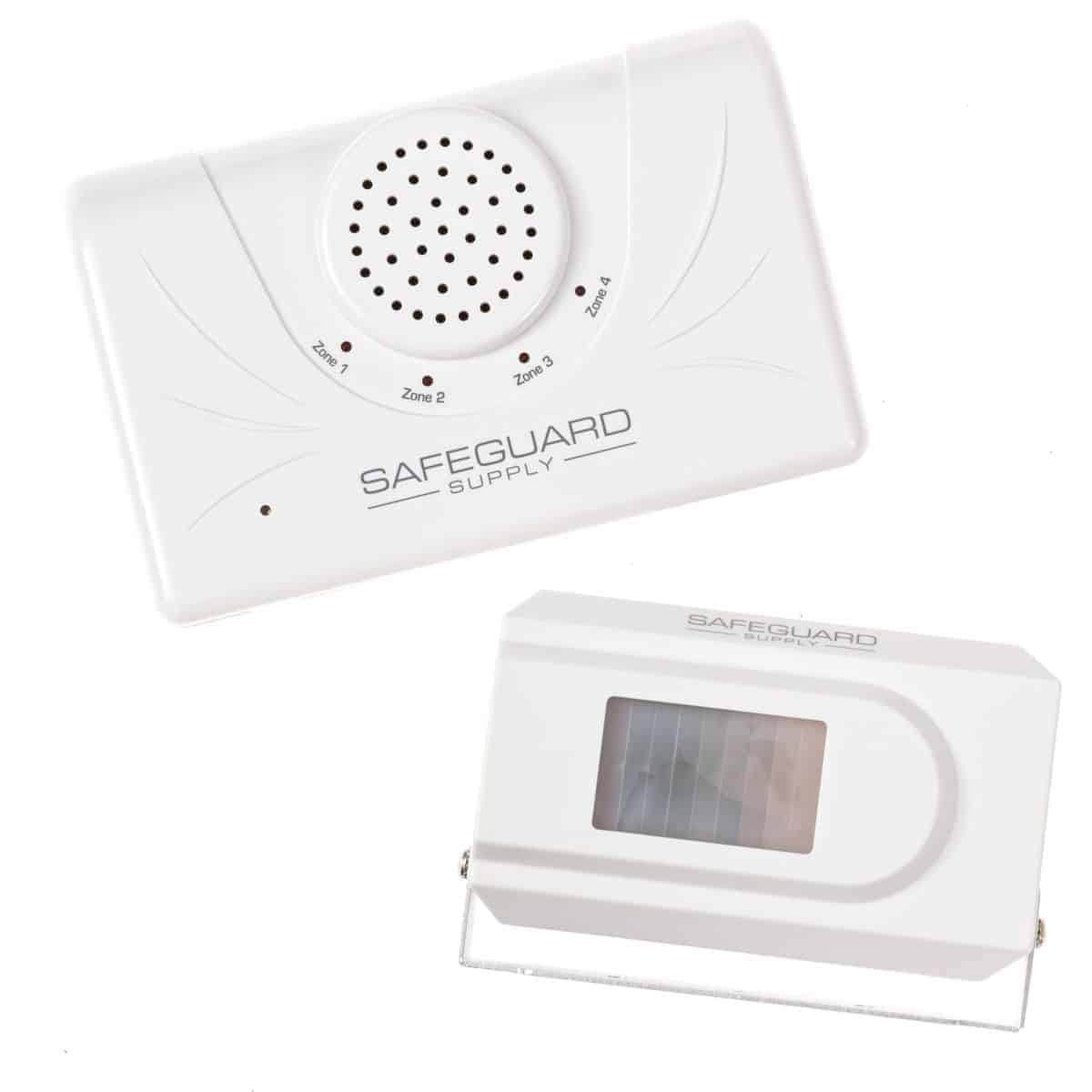

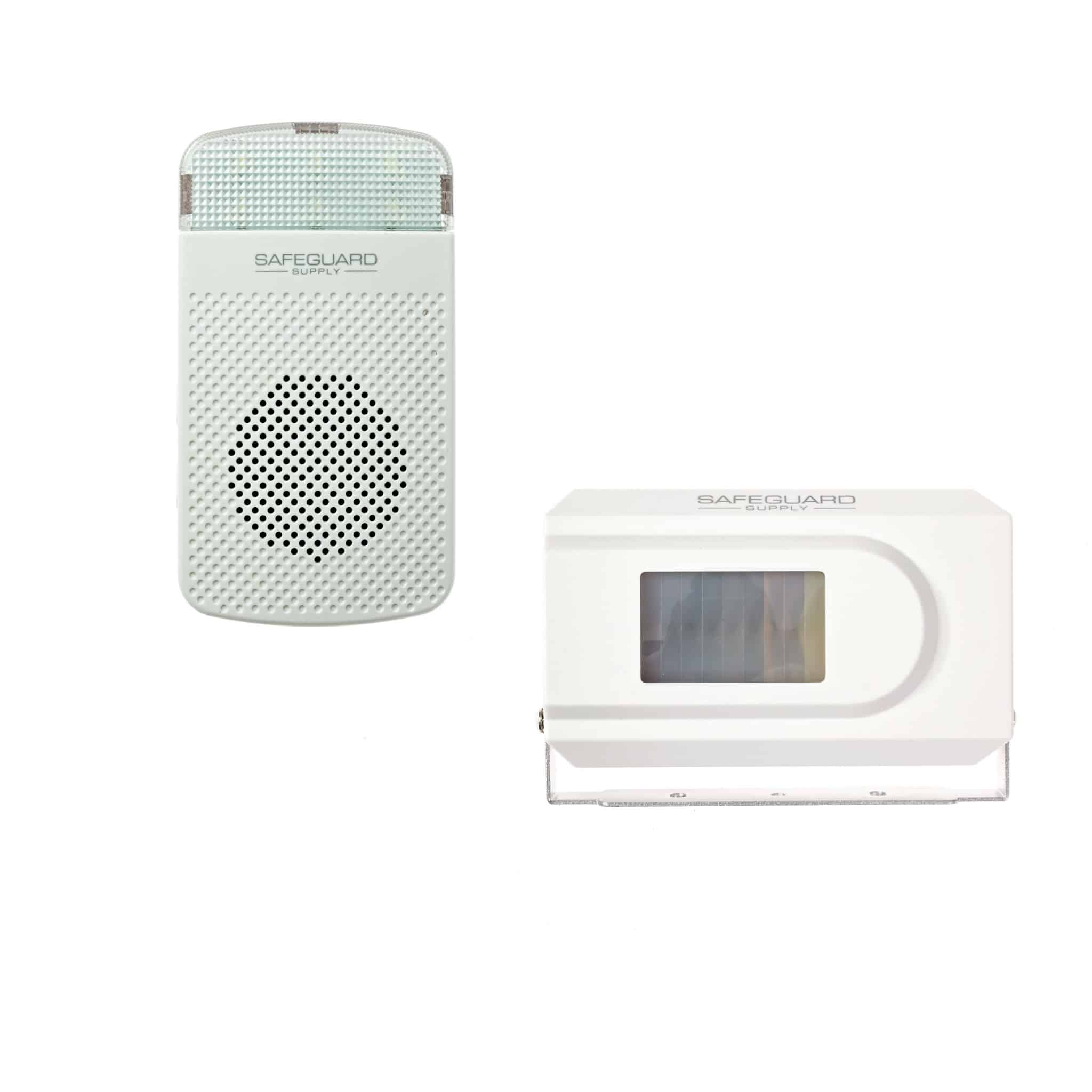

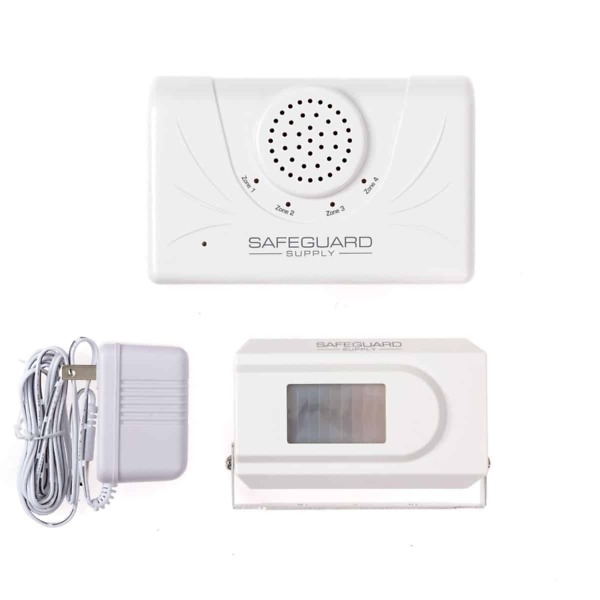

When activated, the sensor transmits a wireless signal, up to 4,000 ft. away to the compatible ERA-DCRX or the ERA-RXPG (choose receiver) wireless receiver.   This kit includes 1 x ERA-PIR sensor/transmitter and 1 x ERA-DCRX receiver or 1 x ERA-RXPG.

The Components of the Motion Alarm Kit

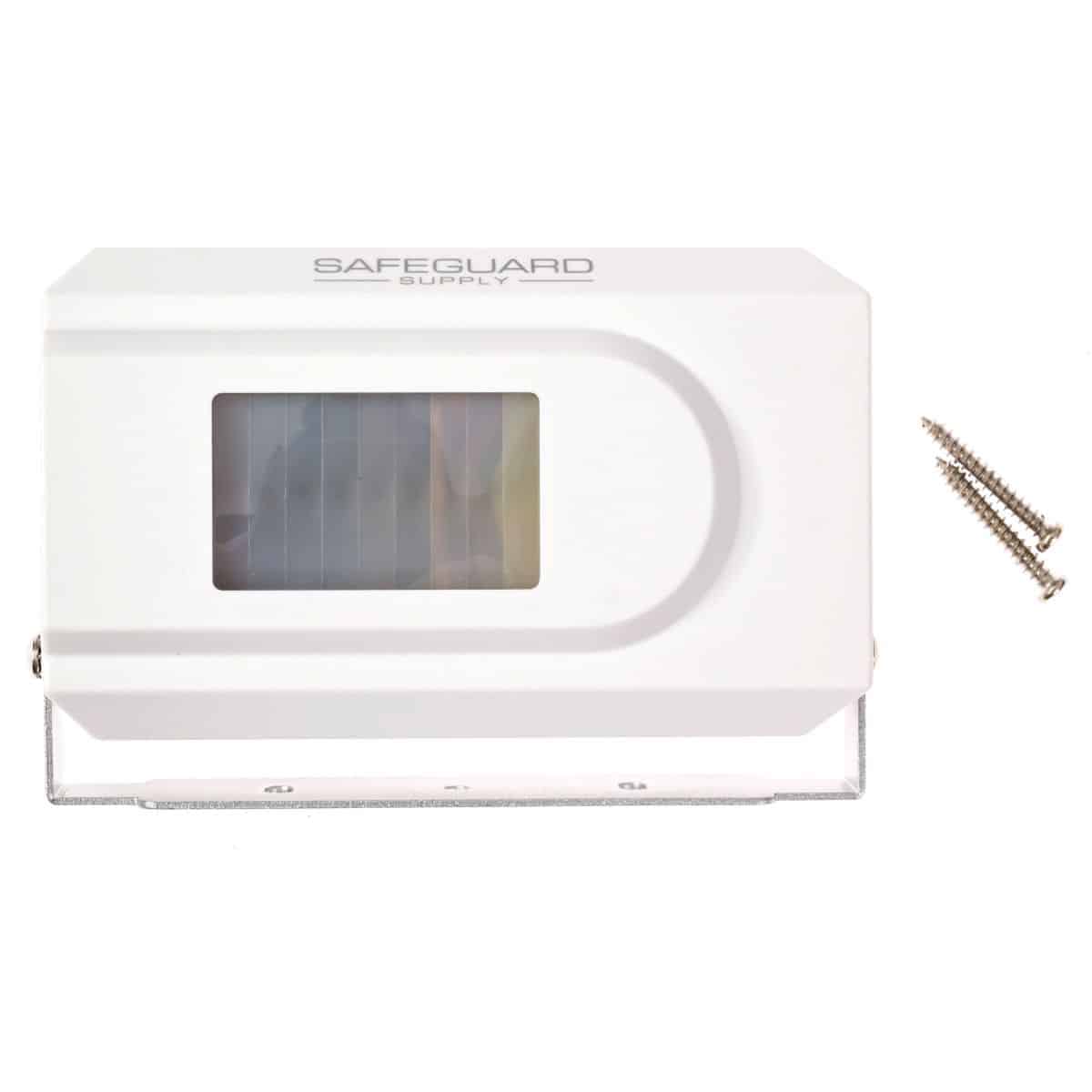

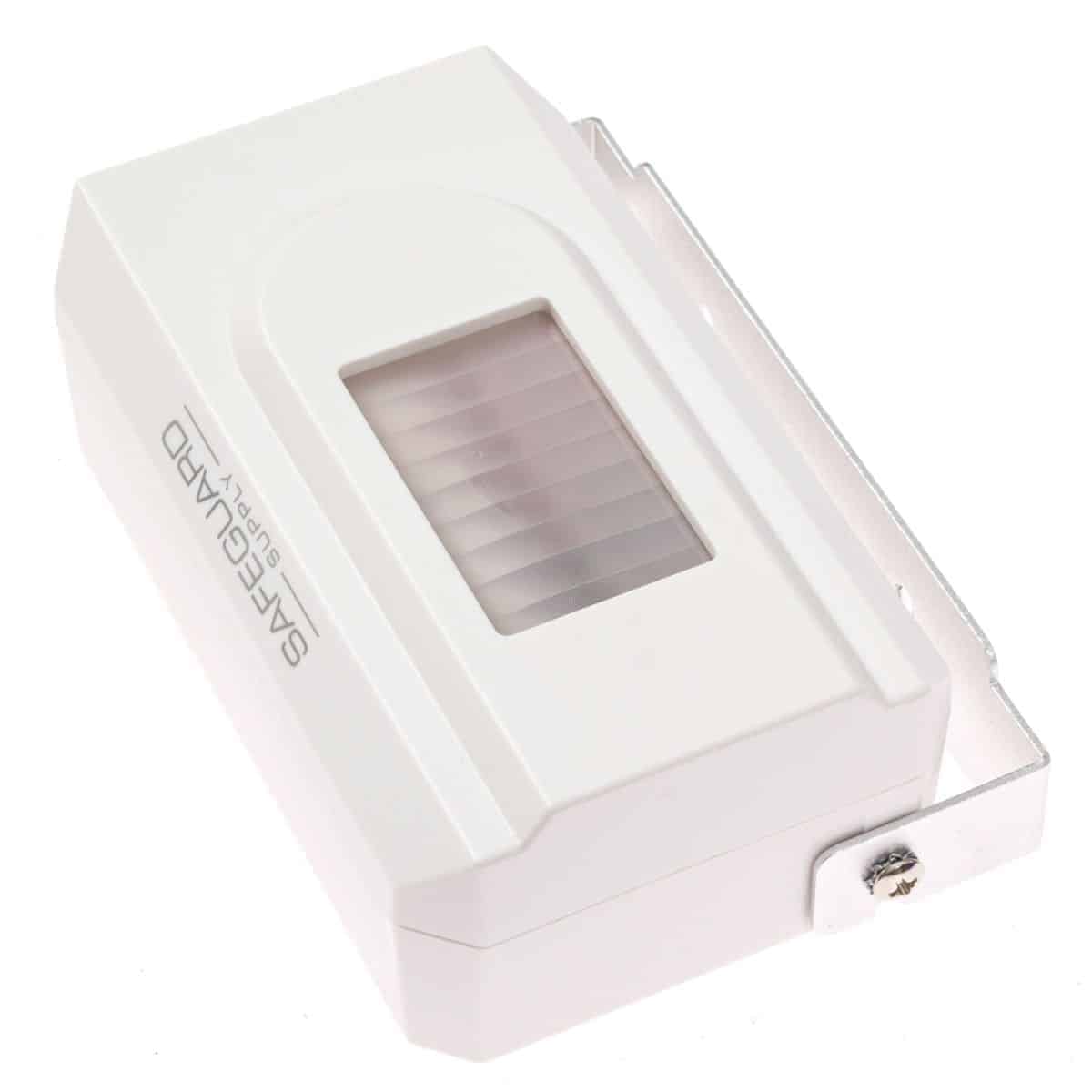

The ERA-PIR Motion Entry Alert Sensor

The sensor is a great choice to use over doors where you cannot mount an ERA door contact sensor or for doors that sometimes stay open, hallways, and more. It creates an invisible zone that triggers when the combination of heat & movement is detected.

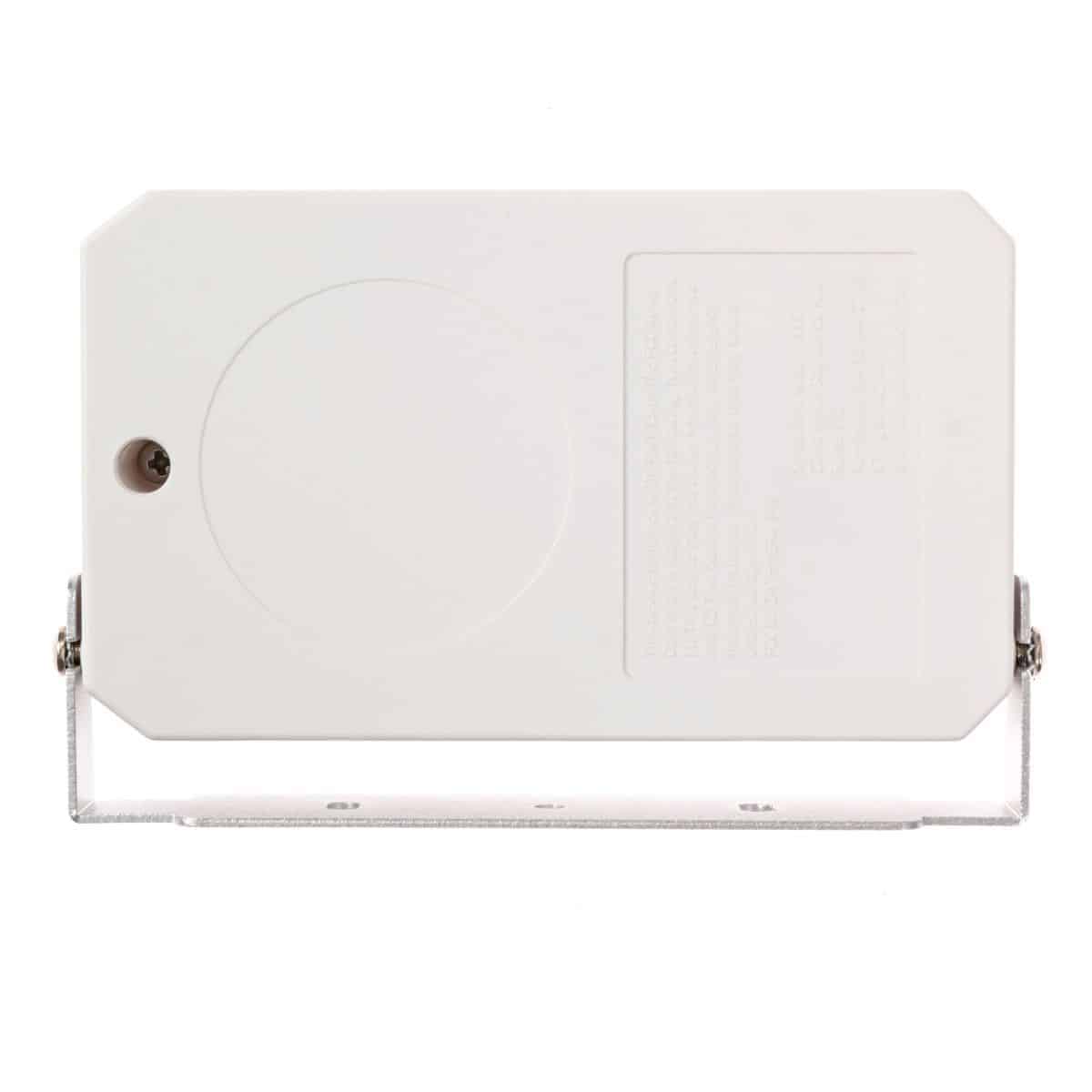

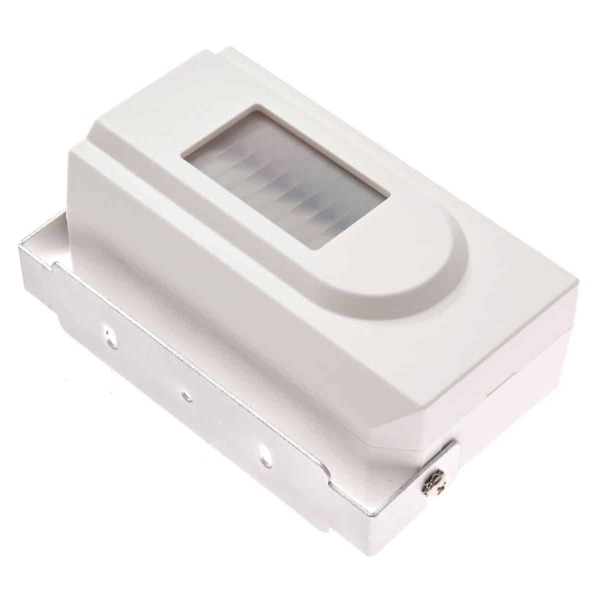

The sensor features a unique aluminum bracket designed to be mounted above a doorway or on the ceiling, allowing you to pivot the sensor towards the monitored zone.   This allows you to have better control over the monitored area to reduce false alarms and interference.  The higher the sensor is mounted, the wider the monitored zone. When a visitor passes under or through the monitored zone, it sends a radio signal, up to 4,000 ft. away to the compatible receiver.

The receiver (see below) will play a chime sound (or flash a strobe depending on the option) when it is triggered by the motion sensor. Up to 12 different sensors may be paired to each ERA compatible receiver, with each sensor triggering the receiver to play a selected chime sound. There is no limit to the number of receivers that may be paired to a sensor/transmitter.

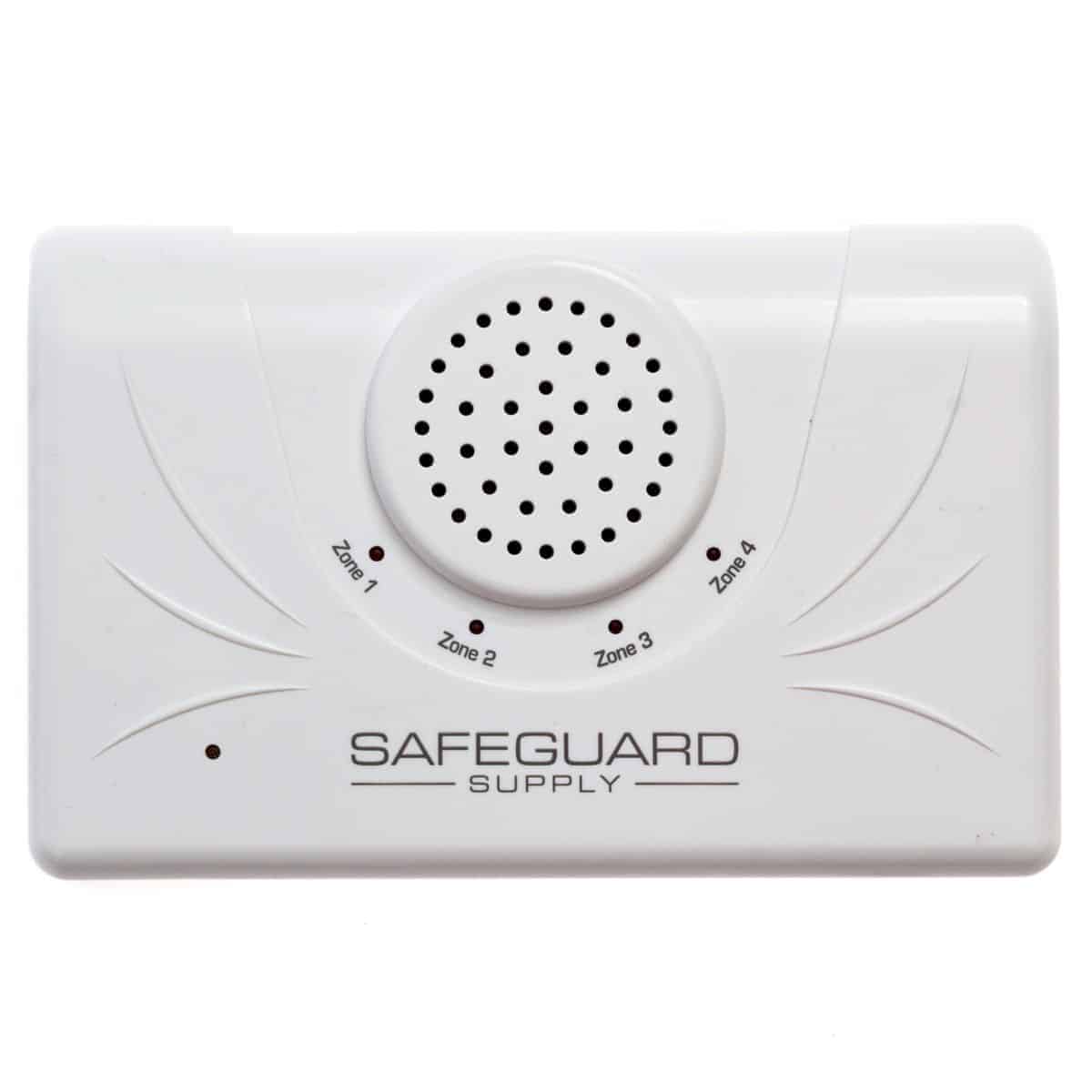

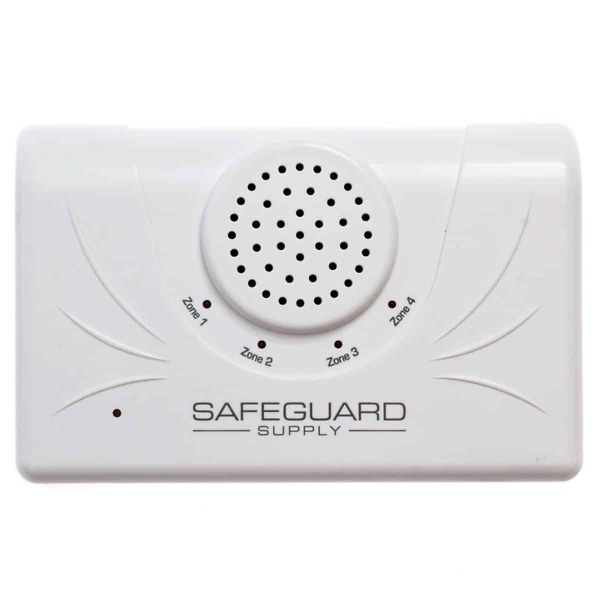

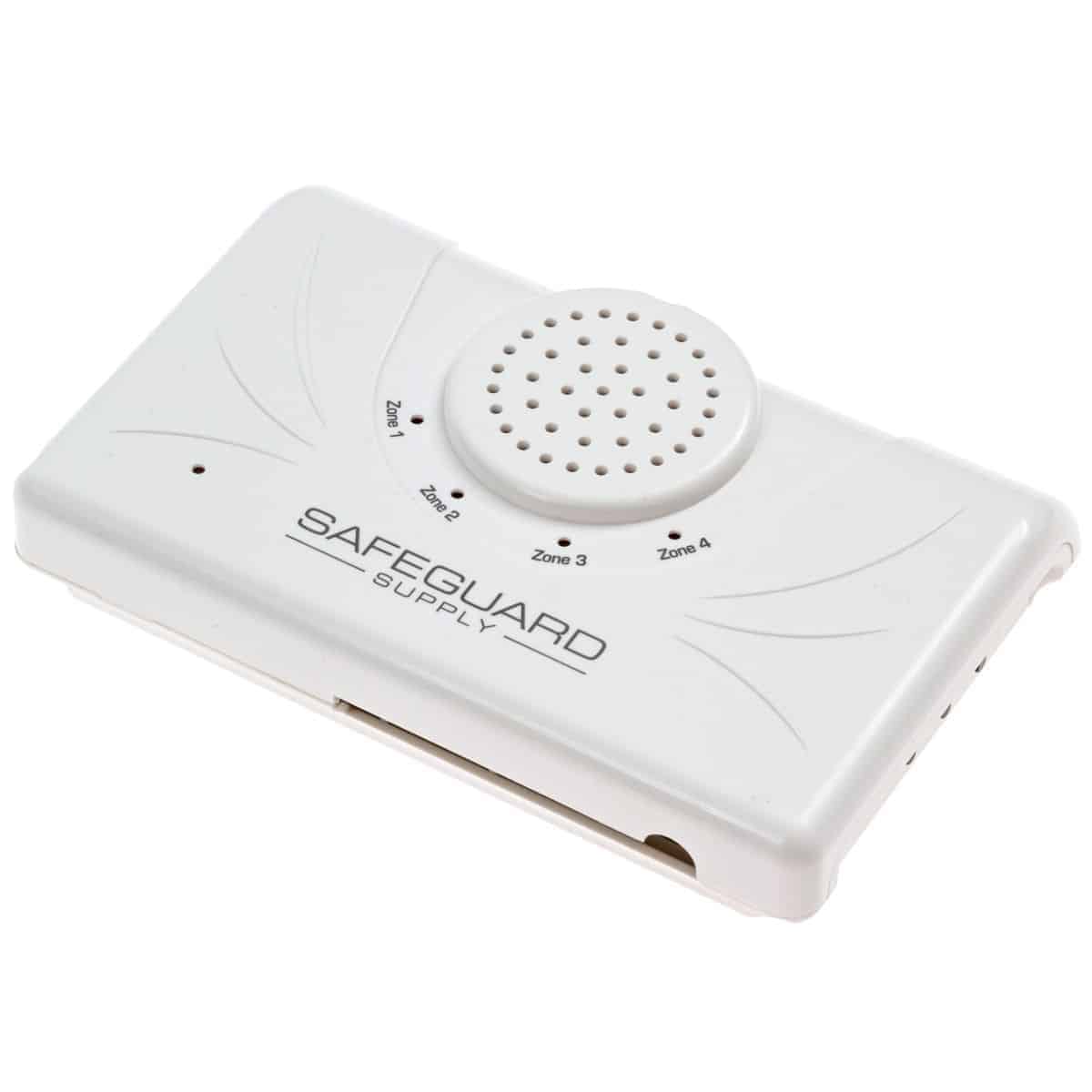

The ERA-DCRX Desktop Receiver Option

Each ERA-DCRX receiver has four zones, with each zone having the capability of pairing with 4 sensor/transmitters.   When triggered, each zone will play 1 of 12 melodies you assign to the zone so you can easily distinguish which sensor was activated.  For example, you may program zone 1, the front door, to play a simple ding-dong sound, while zone 2 plays the Westminster Chime sound.

The receiver features a volume control button that allows you to turn the unit off, mute the unit, and set it to four different sound levels, with a max sound of approximately 85 dB.  In addition, each zone on the receiver features a live 12V DC output that allows you to add sirens, strobes, fire alarm bells, and buzzers to increase the sound and/or bright visual indicators when the listening area is loud.

For complete kits with strobe lights, please visit the WDK-ERA-STROBE, or, for kits that feature external sound options, visit the WDK-ERA-KIT product pages. The sensor/transmitter in this kit is the ERA-PIR, a motion-activated sensor.  The idea behind this sensor is to mount it over an area you would like to monitor such as a doorway, hallway, or another area.

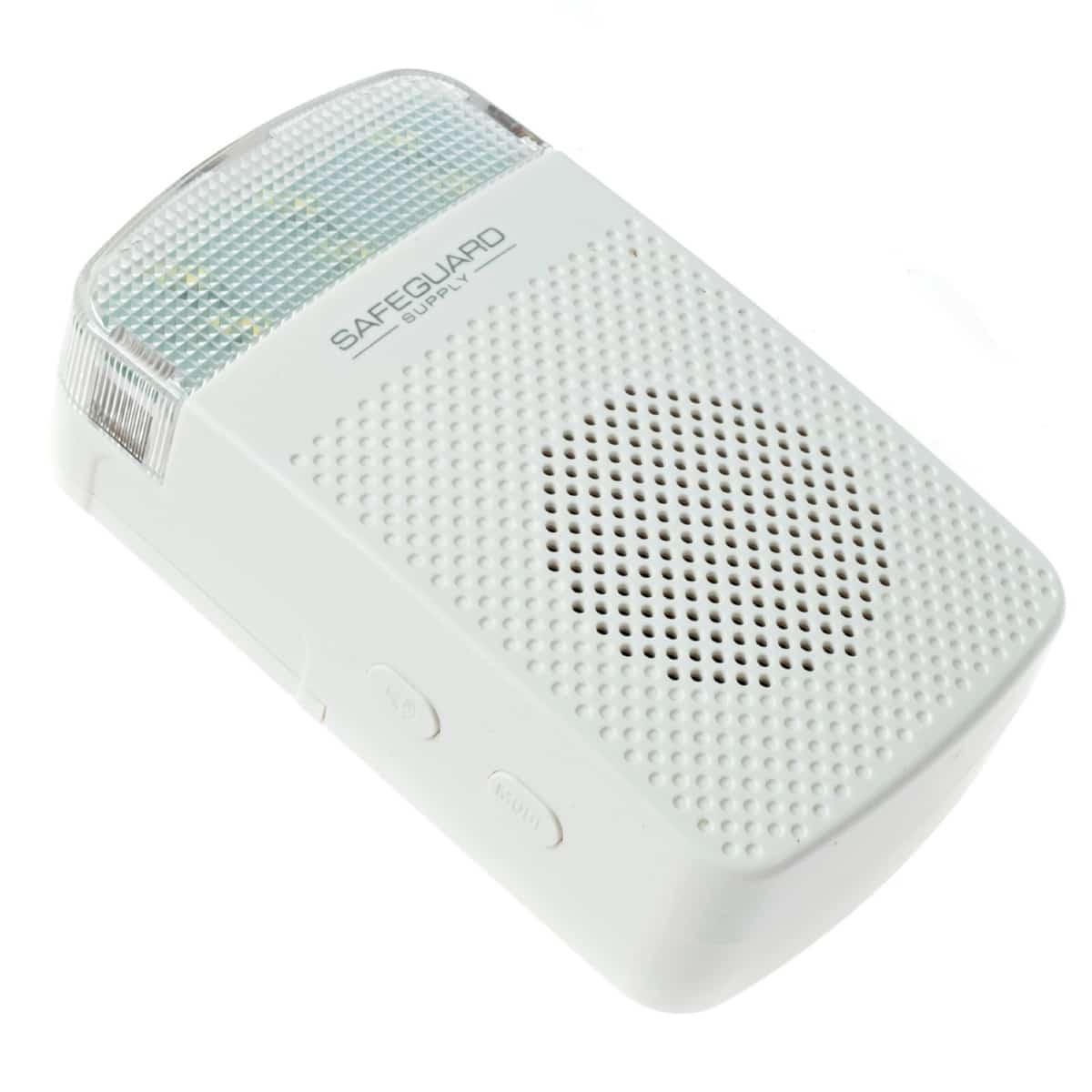

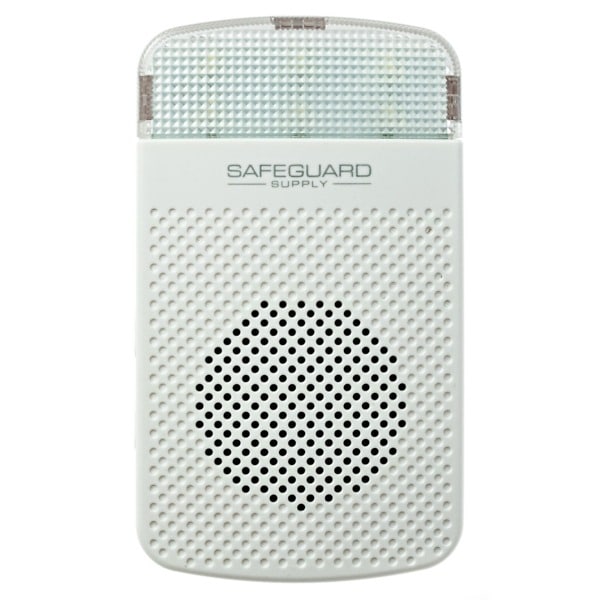

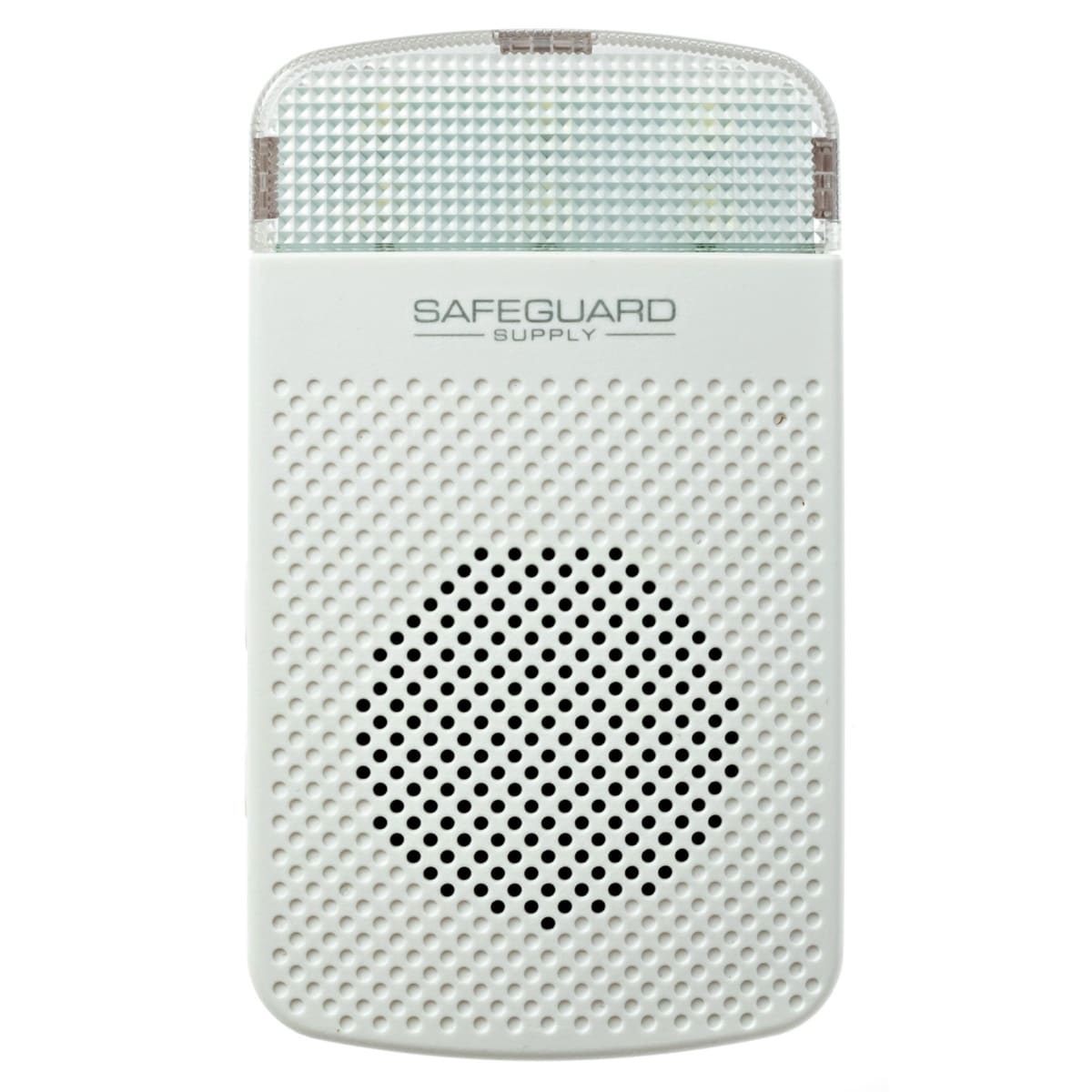

The ERA-RXPG Plugin Receiver Option

The ERA-RXPG is an easy-to-use wireless entry alert plugin receiver. The receiver plugs into a standard wall outlet and plays a chime, flashing strobe, or chime & strobe when it is triggered by the sensor.

The receiver has three different modes of operation: 1) sound only, 2) flashing strobe only, and 3) sound and strobe. It features four (4) levels of volume + mute. When the strobe option is selected, the receiver will flash brightly for approximately 15 seconds. This is a great choice in loud areas where a visual notification is needed, or in a quiet area where you don't want to play a chime sound and would rather see the flashing strobe.

Features of this Motion Based Chime Kit:

• Range from transmitter to receiver is up to 4,000 ft. line of sight.
• Sensor/Transmitter is powered by a 9V alkaline battery (not included).
• The receiver is powered by a plug-in wall transformer (included) for the ERA-DCRX or plugs directly into the wall for the ERA-RXPG.
• The sensor/transmitter is shipped with an aluminum mounting bracket and mounting screws. This bracket makes it easy to position the sensor to best create the monitored zone per your requirement (see chart below).
• Sensor is activated by a combination of heat and movement.
• The sensor is indoor rated.
• Low battery notice:  when the battery in the transmitter is low, the zone indicator light it is paired to will blink for 10 minutes following a trigger & the melody plays two times in a row.
• The ERA-DCRX Receiver has four zones with each zone featuring a 12v DC output.  Each zone can accommodate up to three (3) sensors. The receiver also features a 1 x C-form relay assignable to any combination of zones.
• The ERA-RXPG plugin receiver will work with up to 12 different sensor/transmitters.
• Both receivers feature a volume control button.
• Sound DOES NOT emanate from the sensor/transmitter.  Radio signal transmits from the sensor to the receiver where sound is played.
• Sensor/ Transmitter size: 2.5'' H x 4.55'' W x 1.52''D.
• One-year manufacturer's warranty.
• Manufactured by Safeguard Supply.

How & Where to Mount the Motion Sensor:

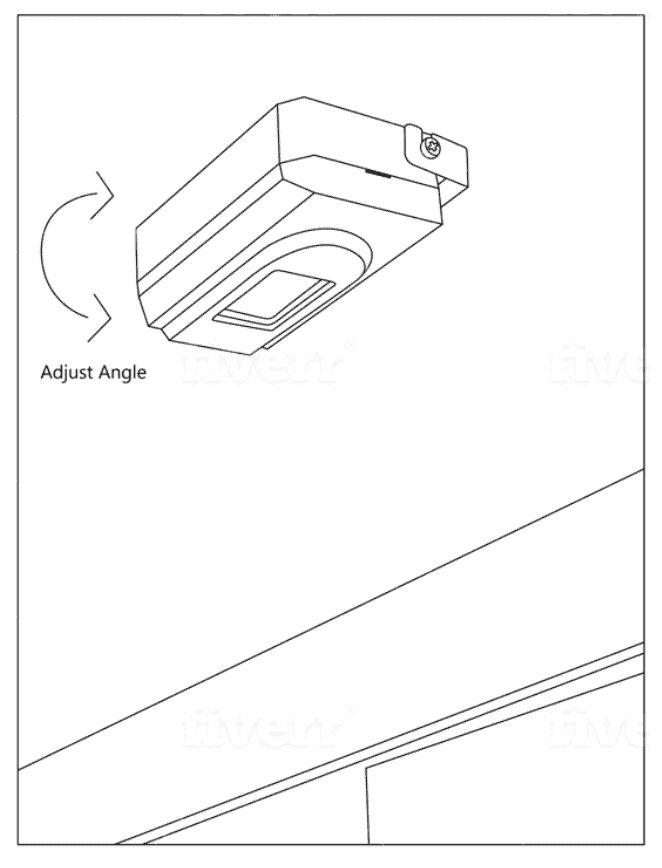

Typical installation of the sensor is to mount it above a doorway to trigger when motion is detected through the doorway (see

First, mount the included aluminum bracket on the wall above the area you would like to monitor.  Next, slide the sensor into the bracket with screws on the end of the sensor fitting into the open end of the bracket.

Next, manipulate the senor angle to create the monitored zone needed in your situation. Finally, tighten the screws.

The Size Motion Sensor's Monitored Zone:

The size of the monitored zone is dictated by the height the sensor is mounted.  The higher it is mounted, the wider the zone.  The sensor was specifically designed to have a narrow depth to help limit the invisible beam bleeding into areas you do not intend to monitor.   The table below provides an approximation of the zone created based on the mounting height.

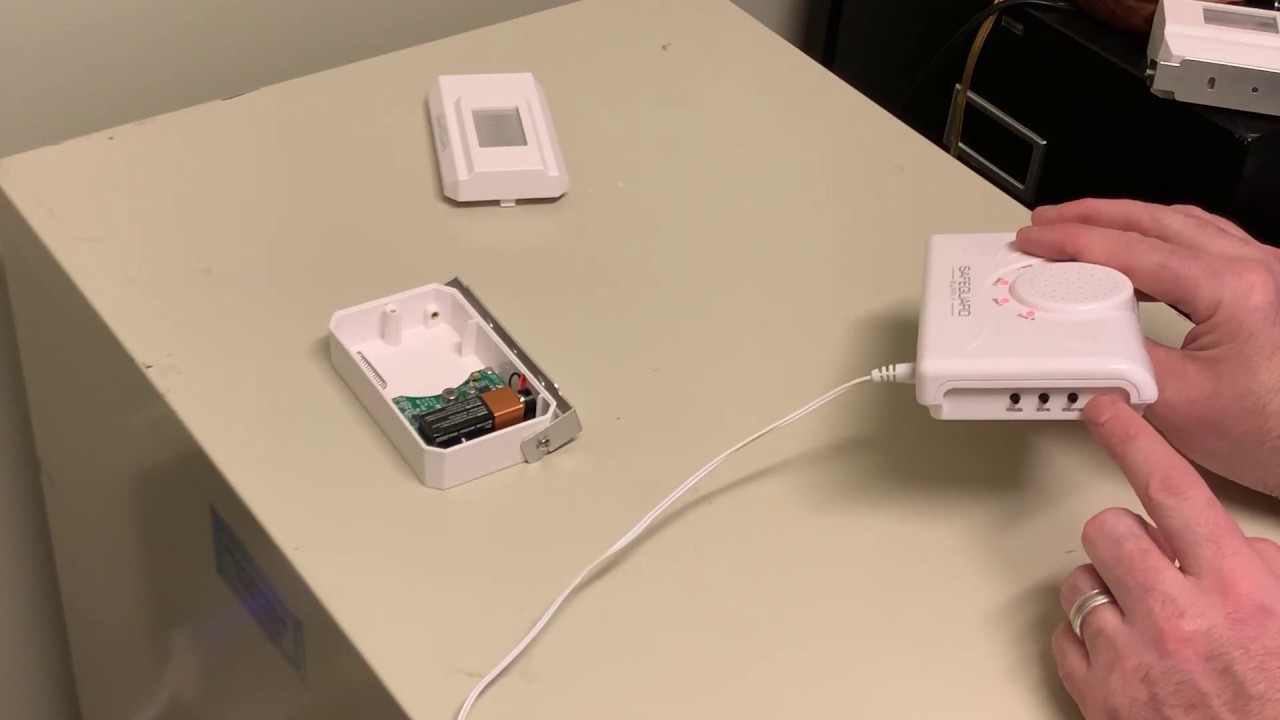

How To Program the ERA-PIR Motion Sensor to the ERA-DCRX Receiver

Hear the Available Sounds of the ERA-DCRX
